Used
AMD AM4Socket Type
AMD B450Chipset
3 (R5/R7/R9)For AMD Ryzen Gen
Specifications
The details

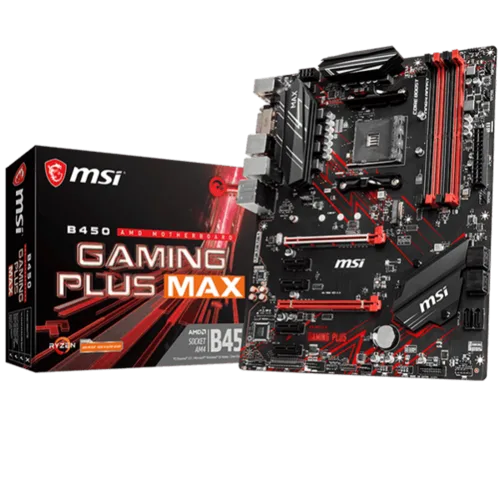

| Brand | MSI |
|---|---|
| Warranty | 03 YEAR WARRANTY |
| Socket Type | AMD AM4 |
| Chipset | AMD B450 |
| For AMD Ryzen Gen | 3 (R5/R7/R9) |
| 4 x PCIe 2.0 x1 slots1 | |
| PCI | _E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot., MULTI-GPU, Supports 2-Way AMD® CrossFire™ Technology, AMD® CPU, 2 x SATA 6Gb/s ports1, 1 x M.2 slot (Key M)1 |
| 4 x SATA 6Gb/s ports | |
| SATA | 5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot., Supports RAID 0, RAID1 and RAID 10 for SATA storage devices, Realtek® ALC892 Codec, 7.1-Channel High Definition Audio, 1 x Realtek® 8111H Gigabit LAN controller, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump-fan connector, 4 x 4-pin system fan connectors, |
About this product
Description
Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- See supported processors
- AMD® B450 Chipset
- 4 x DDR4 memory slots, support up to 64GB
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
- For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- See supported memory
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
- Athlon™ with Radeon™ Vega Graphics support x4 mode
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
- 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
- 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
- 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
